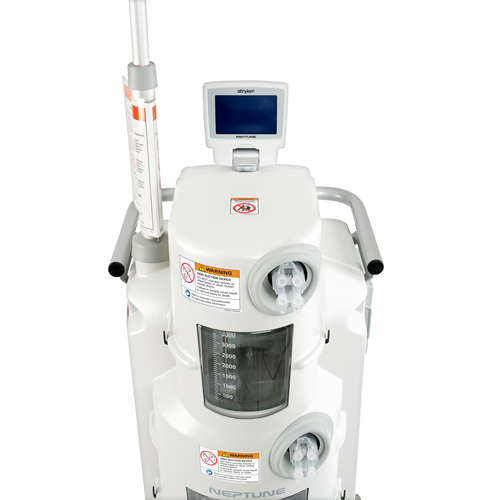

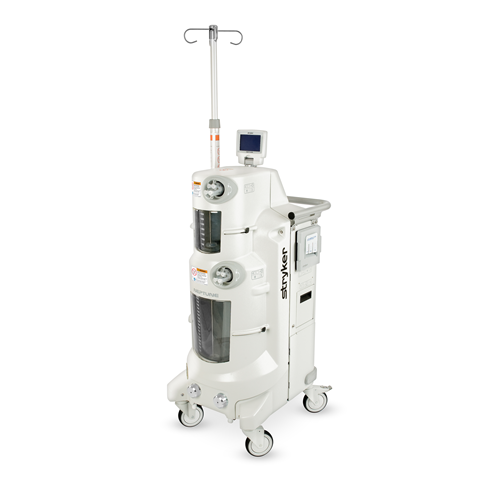

Stryker Neptune 2

The Stryker Neptune 2 is a premier mobile waste management system designed to protect operating room staff from exposure to biohazardous fluids and surgical smoke. By replacing manual fluid collection methods with a constantly closed, “no-touch” system, the Neptune 2 drastically improves infection control and workflow efficiency. With a high-volume 24-liter capacity and integrated smoke evacuation, this system is engineered to handle fluid-heavy procedures while maintaining a safe, contaminant-free environment for patients and clinical teams.

Key Features and Benefits

• SealShut™ Technology: The system remains constantly closed during cases, manifold changes, transport, and docking, ensuring biohazards are systematically contained to prevent fluid contact with staff or the floor.
• Integrated Smoke Evacuation: Features a built-in smoke detector and evacuator with ULPA filtration (99.999% efficiency), capturing harmful particulates, chemicals, and viruses as small as 0.12 microns.
• High-Capacity Fluid Collection: A 24-liter total capacity (combined 4L and 20L canisters) allows for patient-to-patient use, reducing the need for frequent emptying and optimizing OR turnover time.
• Dual Independent Suction: Provides two independently adjustable suction sources (50 to 480 mm-Hg) to manage fluid and smoke simultaneously or support two separate suction needs.
• Automated Docking & Emptying: The Rover connects seamlessly to the docking station for hands-free emptying and an automated cleaning cycle, eliminating manual pouring and exposure risks.
• Powered IV Pole: Integrated, height-adjustable IV pole supports up to four 3,000 mL bags (12,000 mL total) and automatically retracts when the system is powered down.
• Intuitive Interface: A large LCD interface displays clear metrics for low, medium, and high suction, along with audible and visual alerts to keep the surgical team informed.
• Sustainable Design: Reduces red bag waste by eliminating disposable canisters. The unit uses eco-friendly detergents and is 95% recyclable upon decommissioning.

Specifications

• Rover Dimensions: 102″ H (IV pole raised) / 70″ H (lowered) × 19″ W × 23″ D
• Total Fluid Capacity: 24 Liters (one 4L canister, one 20L canister)
• Suction Range: Adjustable from 50 to 480 mm-Hg
• Vacuum Accuracy: +/- 5% of full scale (+/- 24 mm-Hg)
• Smoke Filtration: ULPA filter (99.999% efficiency at 0.12 microns)
• IV Pole Capacity: Four hooks; up to 3,000 mL per hook
• Rover Weight: 300 lbs (empty), 353 lbs (full)
• Docking Station Dimensions: 16″ H × 23″ W × 23″ D
• Docking Station Cycle: Automated emptying and rinsing (approx. 9 gallons water usage per cycle)

Clinical Applications

The Stryker Neptune 2 is an essential safety tool for fluid-intensive and smoke-generating surgical environments:

• Orthopedics and Arthroscopy: Handles high volumes of irrigation fluid easily without interrupting workflow to change canisters.
• General and Plastic Surgery: Protects staff from surgical smoke plumes generated during electrosurgery or laser procedures.
• Urology and OB/GYN: Provides reliable, high-capacity suction for fluid-heavy cases.
• Infection Control Protocols: Ideal for facilities seeking to eliminate open-container waste disposal and reduce cross-contamination risks.

Why Choose the Stryker Neptune 2?

The Stryker Neptune 2 sets the standard for OR waste management by combining fluid collection and smoke evacuation into a single, mobile unit. Its closed-loop design virtually eliminates staff exposure to bloodborne pathogens and surgical smoke, directly contributing to a safer workplace and reduced turnover times. Every Stryker Neptune 2 system from Heartland Medical is professionally refurbished and tested to ensure it meets original manufacturer specifications for vacuum performance and safety.

Heartland Medical Support and Service

Heartland Medical’s dedicated support professionals are committed to enhancing patient care while protecting your investment. Our field service engineers and in-house technical experts are available 24 hours a day, 7 days a week for preventive maintenance, troubleshooting, and parts support. Contact Heartland Medical Sales & Services today for additional information or to request a free quote on the Stryker Neptune 2 Waste Management System.
