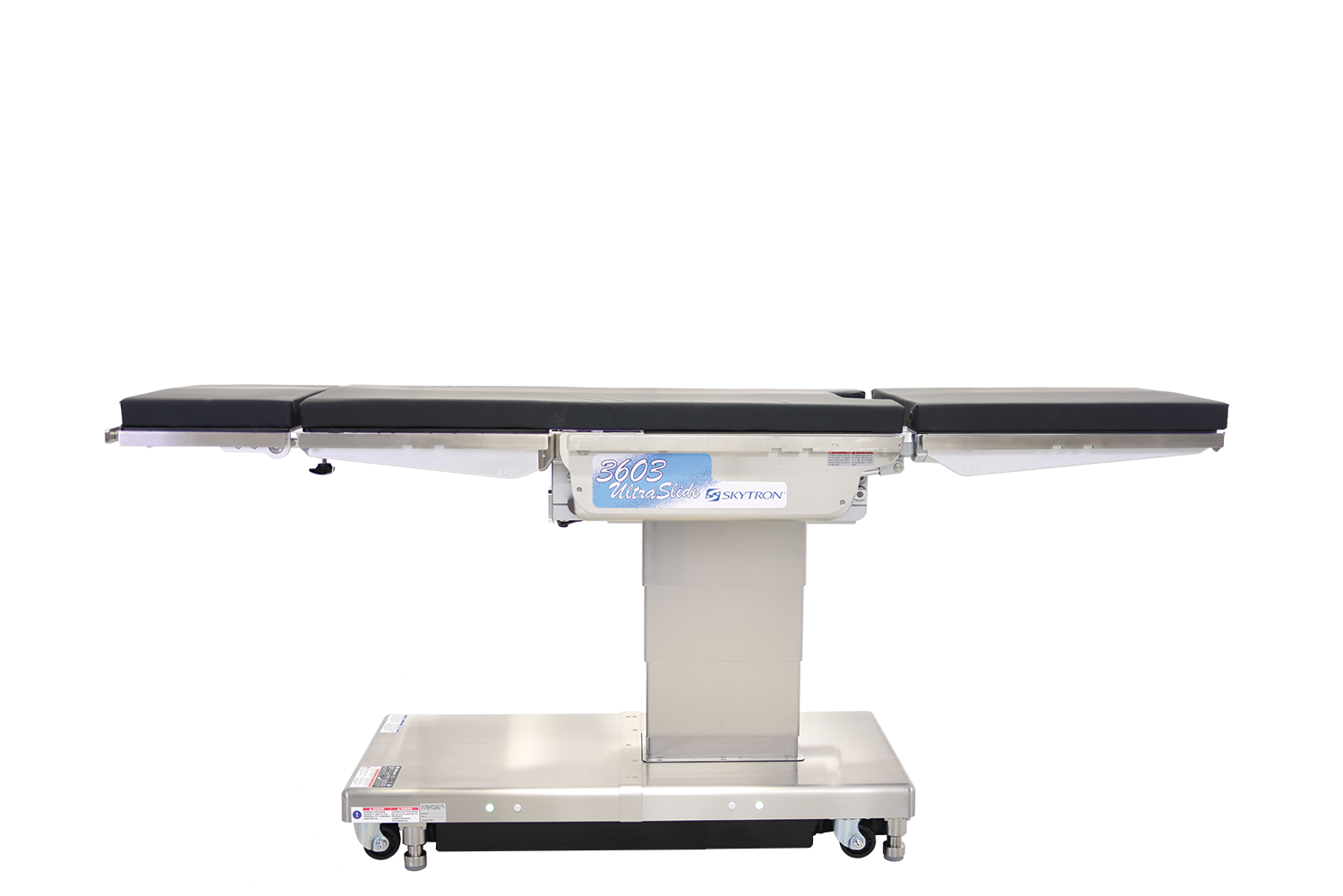

Skytron 3603 Ultraslide

The Skytron 3603 UltraSlide Surgical Table is designed to provide uncompromised imaging access and power for the modern operating room. Delivering the industry’s longest top slide of 26 inches (66 cm), it allows for full-body imaging at the touch of a button without needing to reposition the patient or the table base. Unlike competitor tables, the 3603 UltraSlide maintains its full 800 lb (363 kg) articulation capacity throughout the entire range of top slide, ensuring superior stability and patient safety for diverse body types.

Key Features and Benefits

• Market-Leading Top Slide: Features 26″ (66 cm) of top slide, with 10″ (25 cm) to the head and 16.5″ (42 cm) to the foot, facilitating effortless full-body C-arm access.
• Powerful Weight Capacity: Supports a 1,000 lb (454 kg) lift and an 800 lb (363 kg) articulation capacity, accommodating larger patients without compromising performance.
• Imaging Efficiency: The low-profile base stays clear of imaging equipment, while the top slide moves the patient through the imaging window, eliminating risky repositioning maneuvers.
• Surgical Flexibility: Removable back and leg sections allow for quick attachment of accessories, such as the power beach chair positioner for shoulder surgeries.
• One-Touch Control: Includes a durable, backlit pendant control with pre-programmed positioning options like “Patient Safe Return” (PSR) for simultaneous return to level, enhancing workflow efficiency.
• Low Table Height: Offers a minimum table height of 20.5″ (52 cm), one of the lowest on the market, facilitating comfortable access for surgeons during seated procedures.
• Stability: Features self-leveling brakes that ensure a solid platform even on uneven operating room floors.

Specifications

• Top Slide: 26″ (66 cm) total; 10″ (25 cm) Head / 16.5″ (42 cm) Foot.
• Weight Capacity: 1,000 lb (454 kg) Lift; 800 lb (363 kg) Articulation.
• Height Range (3603 Model): 20.5″ to 39.5″ (52 cm to 100 cm).
• Height Range (3603H Model): 23″ to 41.5″ (58 cm to 105 cm).
• Lateral Tilt: 35° Left/Right.
• Trendelenburg: 40°.
• Reverse Trendelenburg: 30°.
• Leg Section: 15° Up / 100° Down.
• Flex/Reflex: 40° Flex / 90° Reflex.

Clinical Applications

The 3603 UltraSlide is a versatile general-purpose table suitable for a wide range of procedures:

• Imaging: Upper and lower body imaging, including vascular and pain management.
• Bariatric Surgery: High weight limits and stable articulation support bariatric cases.
• Orthopedics: Supports shoulder arthroscopy with the beach chair attachment.
• Neurosurgery: Suitable for cervical and lumbar procedures.
• Other Specialties: Laparoscopic (Lap Nissen), Urology, Ophthalmic/ENT, and Kidney/Thoracic procedures.

Why Choose the Skytron 3603 UltraSlide?

The Skytron 3603 UltraSlide uniquely combines the benefits of a top-slide table with heavy-duty articulation power. By maintaining full weight capacity even when the top is slid to its extreme, it offers a level of safety and stability that other tables cannot match. Its ergonomic design, extensive range of motion, and accessory compatibility make it an ideal “all-in-one” solution for high-volume operating rooms requiring flexibility and speed.

Heartland Medical Support and Service

Heartland Medical is dedicated to providing high-quality refurbished medical equipment that meets the rigorous demands of modern healthcare. Our factory-trained technicians ensure every Skytron 3603 UltraSlide table is inspected and serviced to manufacturer standards. Contact Heartland Medical Sales & Services today for a quote or to learn more about our rental and service options.
