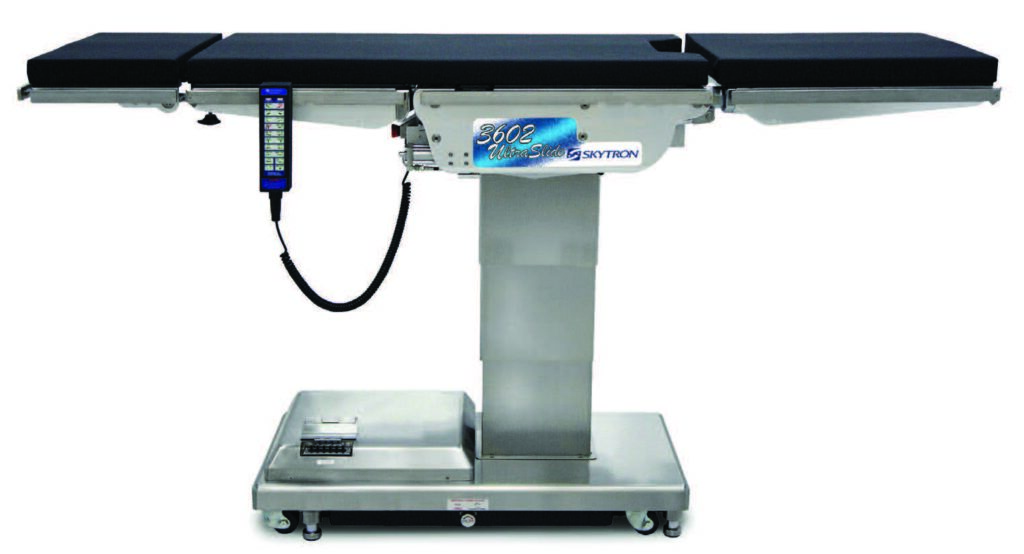

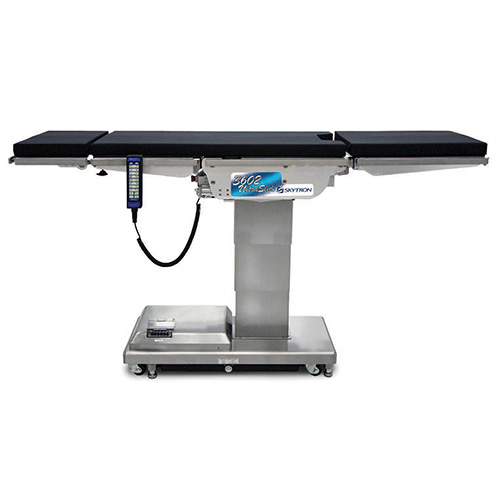

Skytron 3602 Ultraslide

The Skytron 3602 UltraSlide is a high-performance electrohydraulic surgical table designed to streamline imaging workflows and support heavy-duty cases. Featuring a 23-inch top slide, it allows patients to be moved quickly and effortlessly through the imaging window, eliminating the need for risky maneuvering or reversing the patient. With a robust 1,000 lb lift capacity and a narrow base design for superior surgeon access, the 3602 UltraSlide is a versatile solution for modern operating rooms ranging from orthopedics to general surgery.

Key Features and Benefits

• Exceptional Top Slide: Provides 23 inches of tabletop slide (9 1/2″ to the head, 13 1/4″ to the foot), facilitating full-body imaging access with C-arms.
• High Weight Capacity: Supports a 1,000 lb (450 kg) lift capacity and 800 lb (360 kg) articulation capacity, making it ideal for bariatric procedures.
• Superior Stability: Equipped with a 4-point self-leveling braking system that ensures a solid platform, even on uneven operating room floors.
• Ergonomic Base Design: Features a narrow base profile that provides toe space clearance, allowing surgeons to stand closer to the patient and reducing back strain.
• Versatile Positioning: Includes removable back and leg sections for quick accessory attachment and supports one-touch power beach chair positioning.
• Reliable Operation: Electro-hydraulically operated with battery backup to ensure continuous functionality.

Specifications

• Table Dimensions:
  • Length (w/o headrest): 69 1/2″ (1,765 mm)
  • Length (with headrest): 82 1/8″ (2,086 mm)
  • Width: 19 5/8″ (500 mm); Width with side rails: 21 7/8″ (555 mm)
• Height Range: 24 3/8″ to 43 1/4″ (620 – 1,100 mm)
• Slide Range: 23″ Total (9 1/2″ Head / 13 1/4″ Foot)
• Power Kidney Bridge: 5 3/4″ (146 mm) Lift
• Patient Weight Capacity: 1,000 lb Lift / 800 lb Articulation

Articulation Capabilities

• Lateral Tilt: ±30°
• Trendelenburg / Reverse Trendelenburg: ±30°
• Back Section: 90° Up / 40° Down
• Leg Section: 15° Up / 100° Down
• Flex / Reflex: 40° / 90°
• Head Section (Manual): 60° Up / 90° Down

Why Choose the Skytron 3602?

The Skytron 3602 UltraSlide is engineered to reduce setup time and enhance patient safety. Its ability to slide the patient extensively allows for optimal imaging coverage without moving the C-arm or the table base. Combined with its durable stainless steel construction and high weight limits, it serves as a dependable workhorse for diverse surgical specialties.

Heartland Medical Support and Service

Heartland Medical is dedicated to providing high-quality refurbished medical equipment that meets the rigorous demands of modern healthcare. Our factory-trained technicians ensure every Skytron 3602 table is inspected and serviced to manufacturer standards. Contact Heartland Medical Sales & Services today for a quote or to learn more about our rental and service options.
