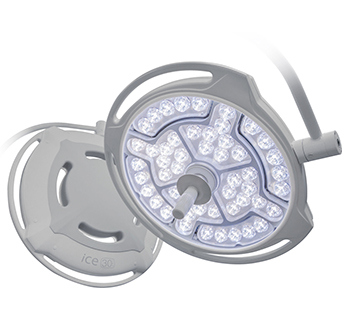

Amico iCE LED Surgical Lighting System

The Amico iCE LED Surgical Lighting System brings state-of-the-art illumination to the operating room, combining advanced LED technology with an intuitive, hygienic design. Available in two light-head sizes—the iCE 30m and iCE 25—this system delivers bright, cool white light with adjustable pattern sizes to ensure optimal visualization for any procedure. With superior shadow control and deep cavity illumination, the iCE LED system allows surgeons to differentiate tissues with exceptional clarity, while its energy-efficient design ensures a service life of over 50,000 hours.

Key Features and Benefits

• Advanced Visualization:
  • Shadow Control: Designed for superior shadow control and increased depth of field, maintaining illumination even when the surgical team is working directly under the light.
  • Color Accuracy: Features a high Color Rendering Index (CRI) of 97 and an R9 value greater than 90, enabling precise tissue differentiation.
  • Adjustable Color Temperature: The multi-color option allows surgeons to adjust the color temperature from 3500K to 5000K, tailoring the light to specific procedures and preferences.
• Intuitive Control:
  • Brightness & Focus: Brightness is adjustable from 50-100% (with a special 5% Endo mode), and the light field diameter can be easily adjusted using the sterilizable central handle.
  • Endo Mode: A dedicated Endo mode provides low-level illumination ideal for minimally invasive surgeries.
• Hygienic Design: The sleek, smooth surfaces are easy to clean and compatible with a wide range of hospital-grade disinfectants, ensuring a sterile environment.
• Cool Operation: The LED technology produces very low heat, keeping the surgical field cool and comfortable for the patient and staff.
• Versatile Mounting: Compatible with various ceiling heights and mounting configurations, including single, dual, and triple mounts, as well as wall mounts and mobile stands.
• HD Camera Ready: Optional in-light HD cameras can be integrated for recording and teaching purposes.

Model Specifications

iCE 30m LED

• Light-head Diameter: 30 in. (76 cm)
• Light Intensity: 160,000 lux (14,870 fc)
• Light Field Diameter: 7.6 – 12 in. (19 – 31 cm)
• Depth of Illumination (L1+L2): 16.8 in. (42.7 cm) at 60%
• Number of LEDs: 80 (main) + 320 (other)
• Power Consumption: 50 W @ 24 VDC

iCE 25 LED

Available in 160,000 lux or 130,000 lux configurations.

• Light-head Diameter: 25 in. (64 cm)
• Light Intensity: 160,000 lux or 130,000 lux
• Light Field Diameter: 7.6 – 11 in. (19 – 28 cm)
• Number of LEDs: 52 (main) + 208 (other)

Why Choose the Amico iCE LED System?

The Amico iCE LED system is designed for reliability and ease of use. It features an automatic emergency backup board that ensures continuous operation even in the event of a primary system fault. With modular mounting options and upgradeable features like HD cameras and smart handles, the iCE LED system adapts to the evolving needs of your facility.
